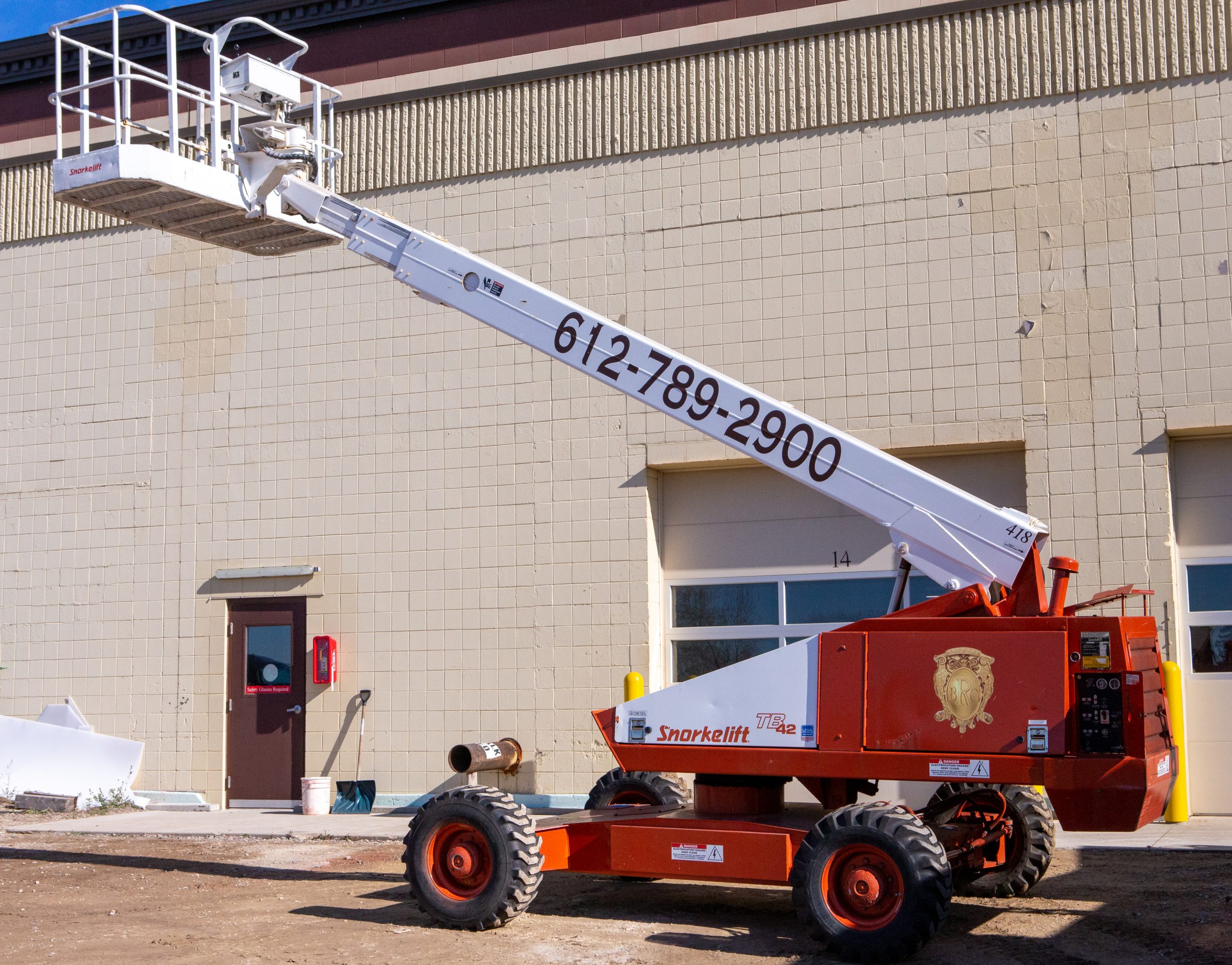

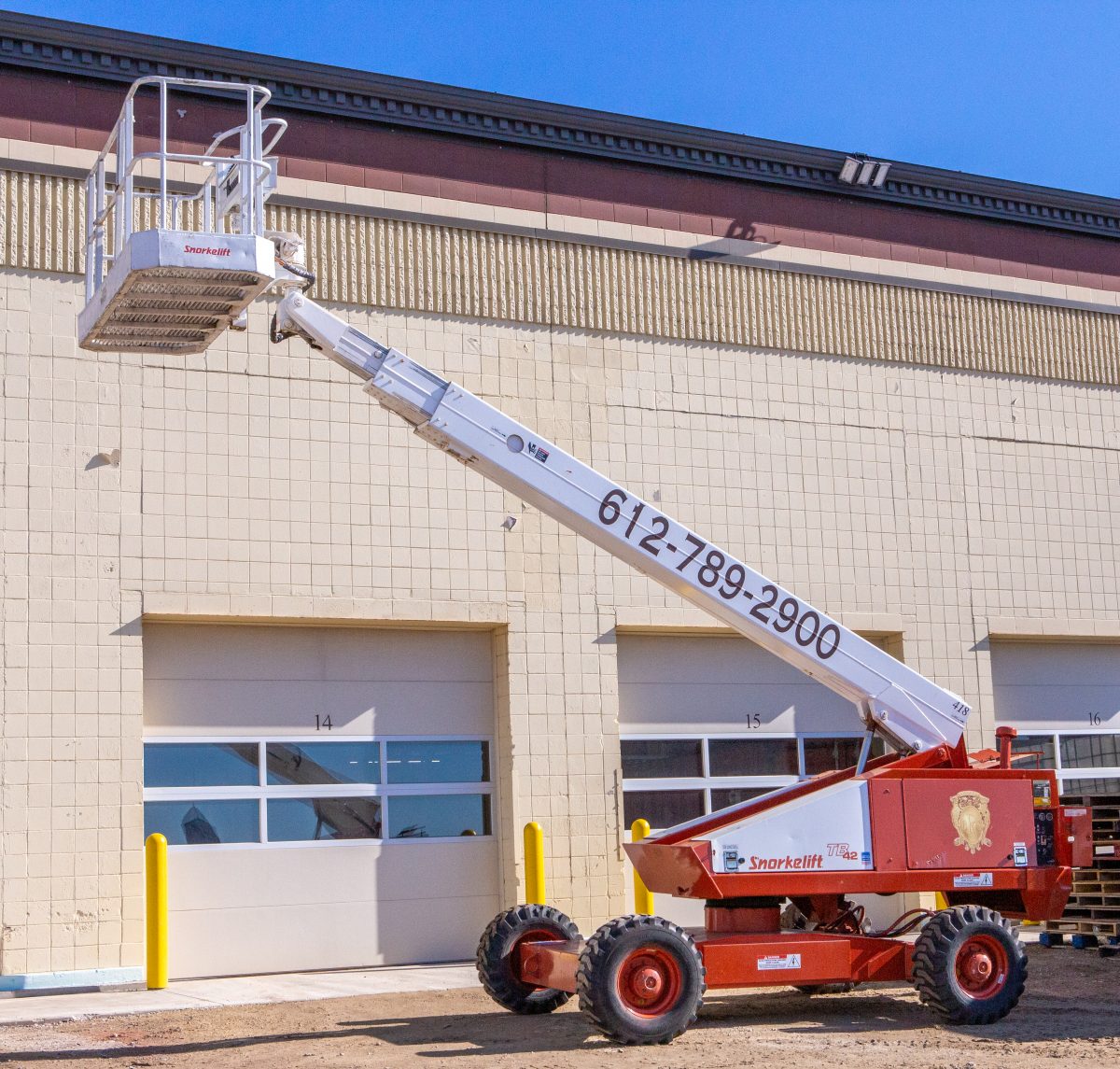

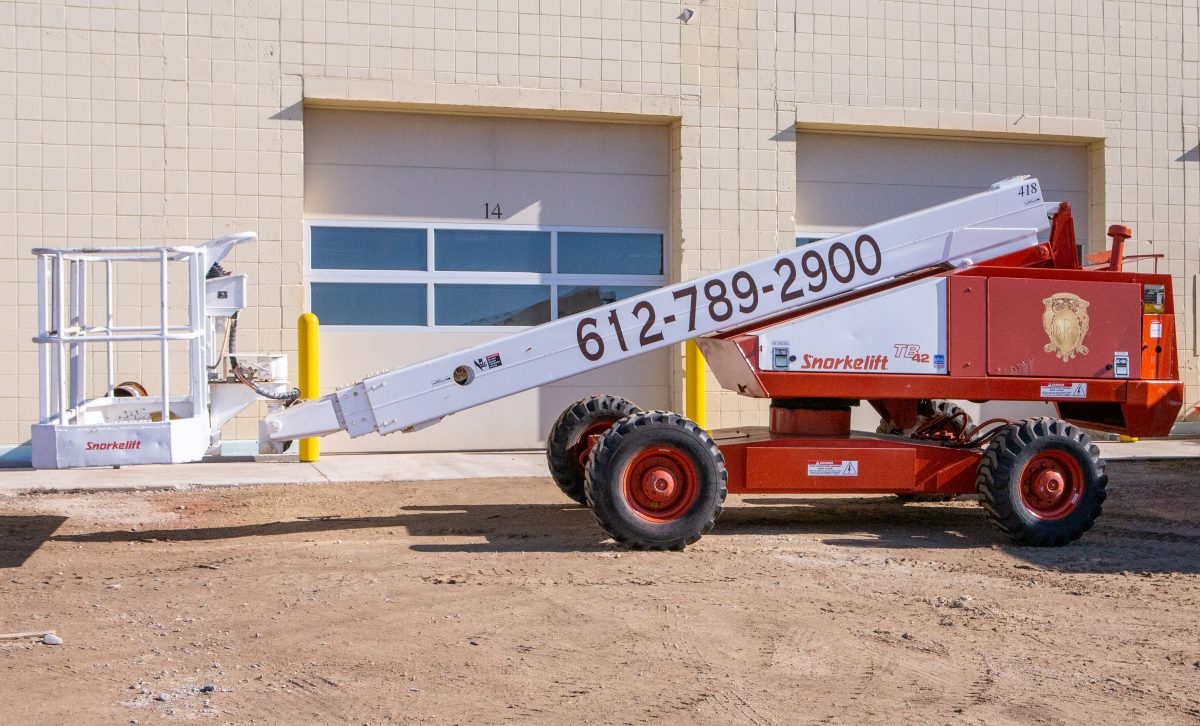

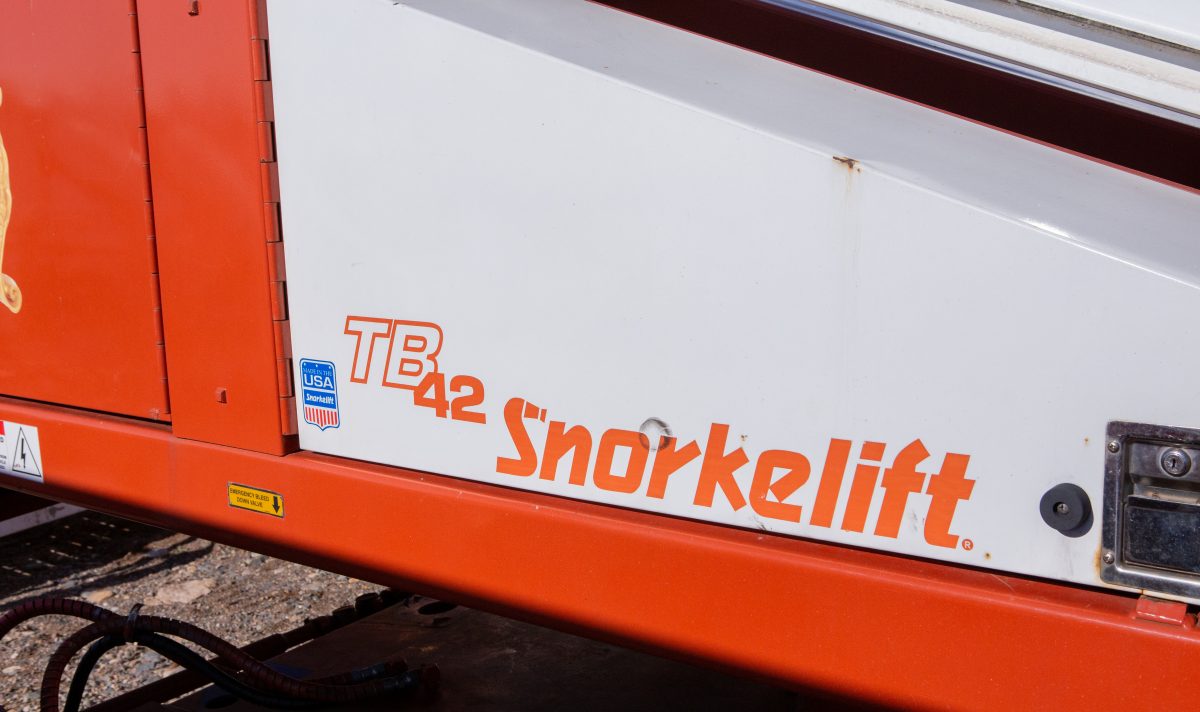

Snorkel – TB42 4×4

Working Height: 48′
Platform Height: 42′
Capacity: 500 lbs

SKU: 2 Category: Tag:

Description

Selected Dimensions

DIMENSIONS
A. Overall Length: 23.6 ft
B. Overall Width: 8 ft
C. Overall Height – Mast Lowered: 8.2 ft
D. Wheelbase: 7.9 ft
E. Ground Clearance: 9.8 in

PLATFORM
F. Max Platform Height: 41.3 ft
G. Max Horizontal Reach: 34.8 ft

Specifications

ENGINE
Fuel Type: Diesel

OPERATIONAL
Operating Weight: 11600.7 lbs
Max Speed: 3 mph

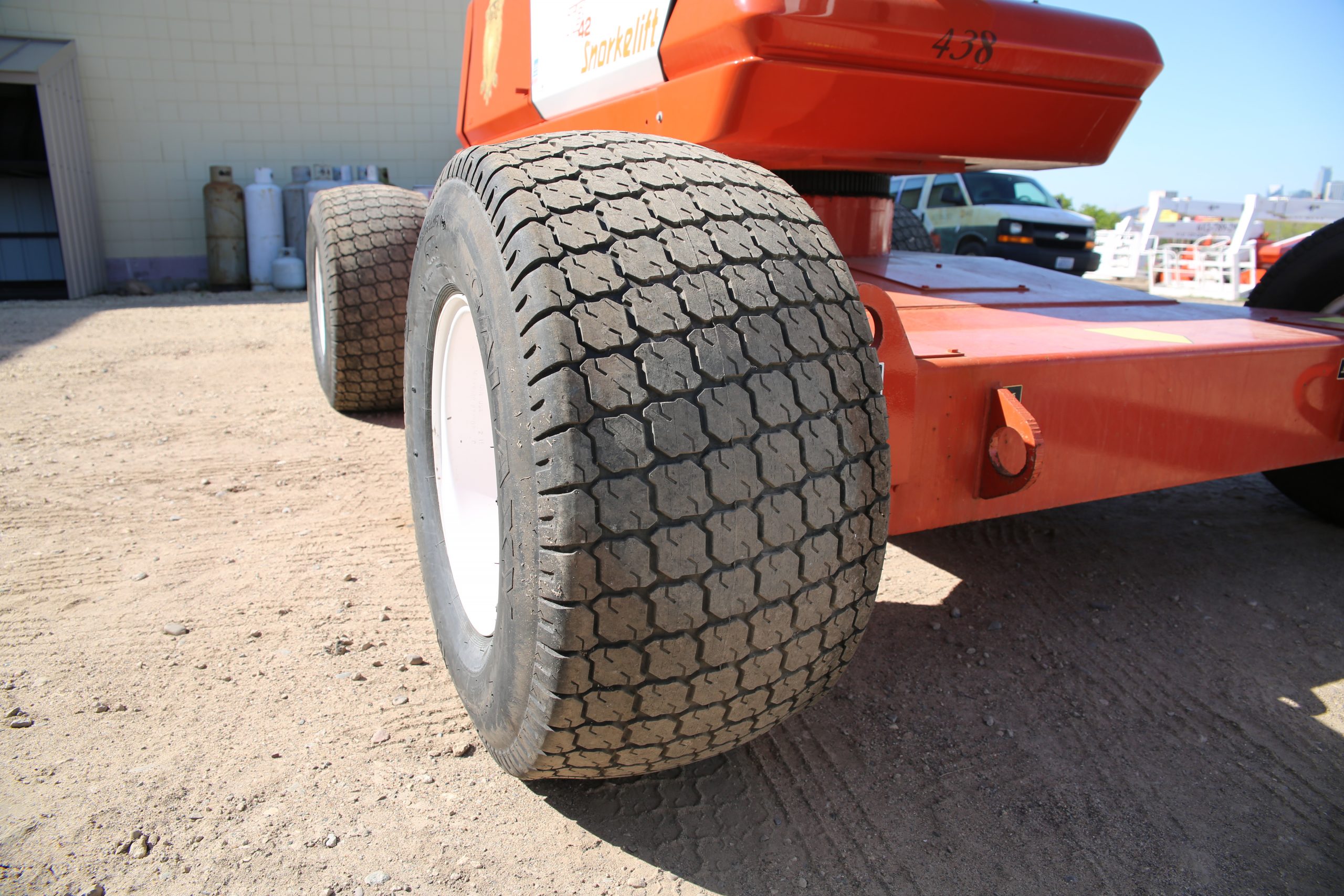

Tire Size: 12×16.5

PLATFORM
Max Platform Height: 41.3 ft
Max Horizontal Reach: 34.8 ft
Max Platform Weight Capacity: 500.4 lbs
Platform Length: 59.8 in
Platform Width: 29.9 in

Manufacturer Manual: Download PDF
