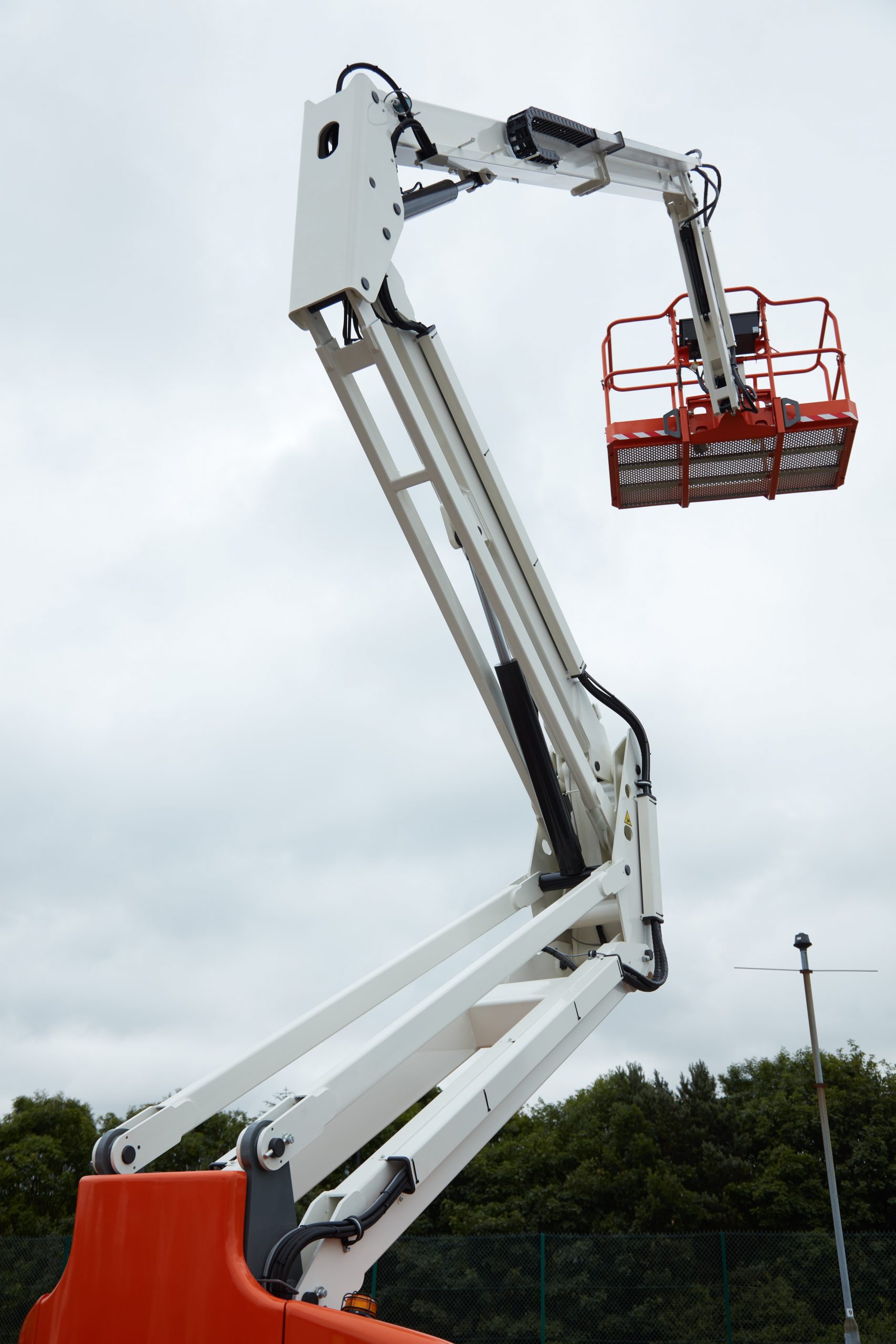

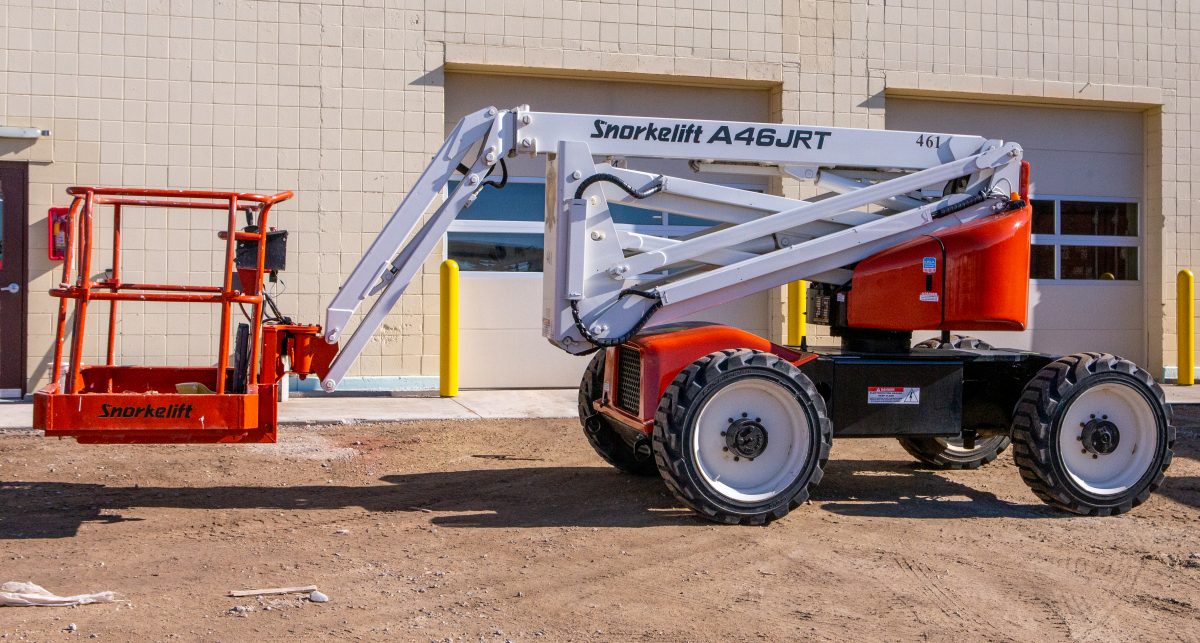

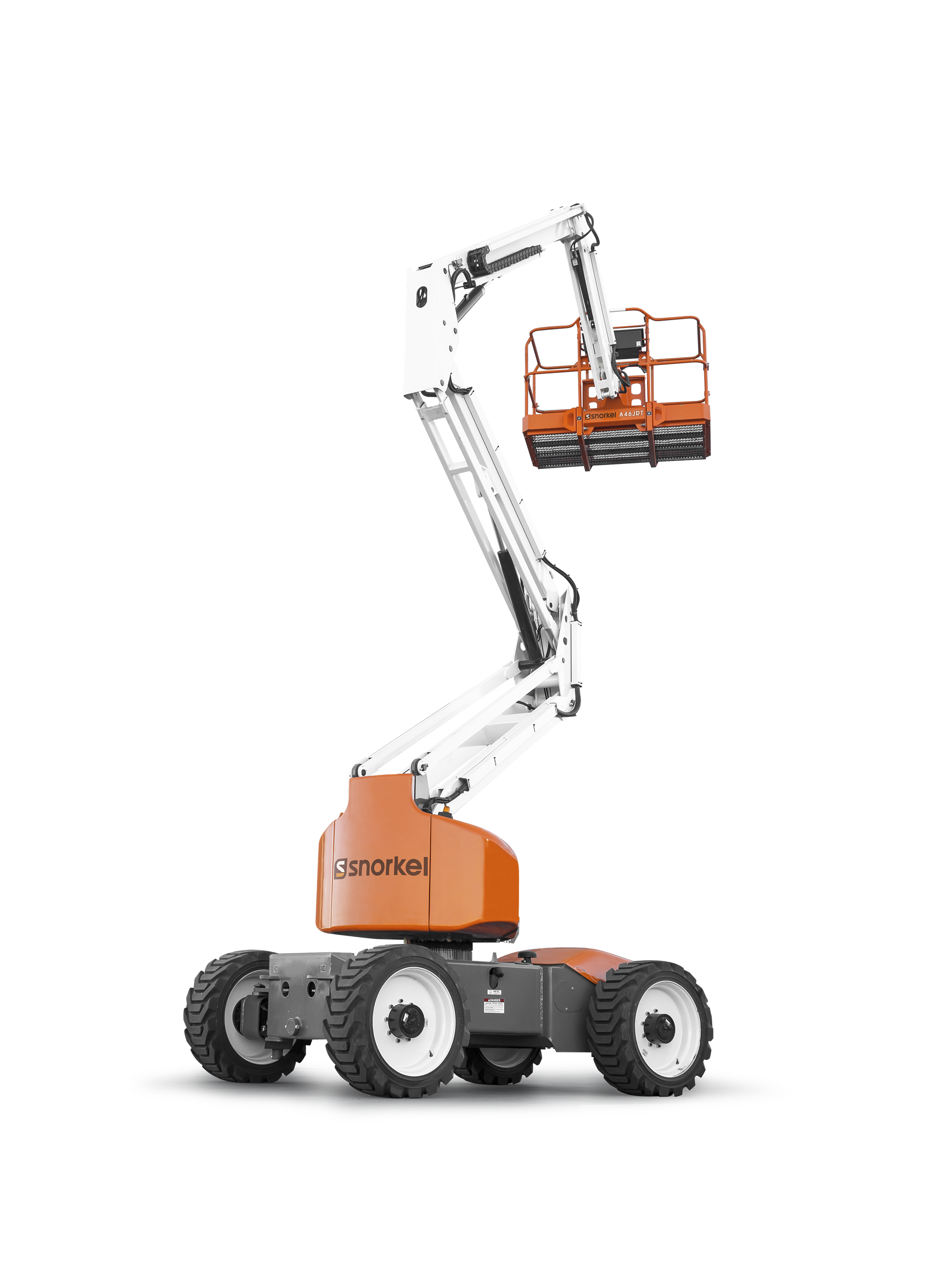

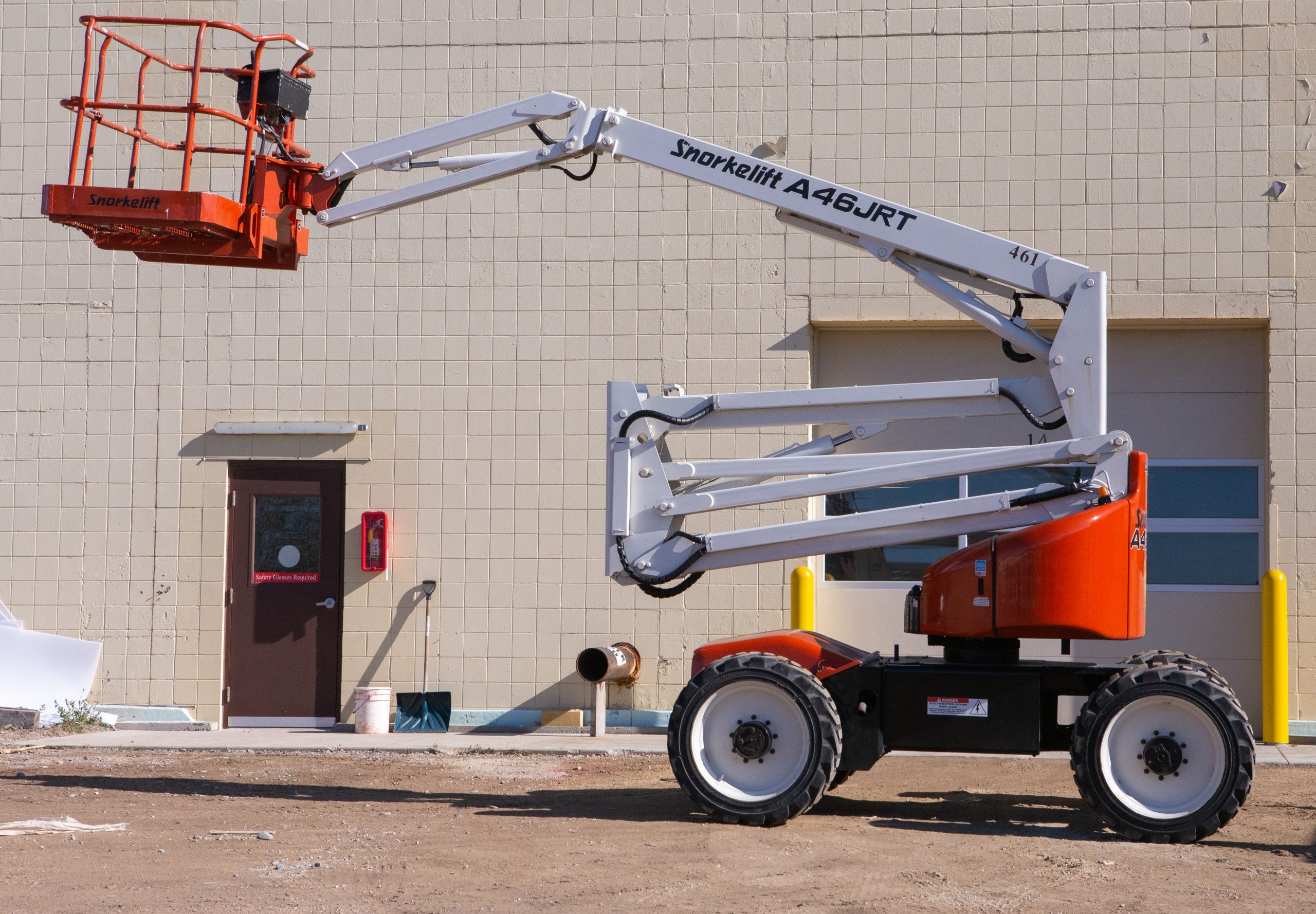

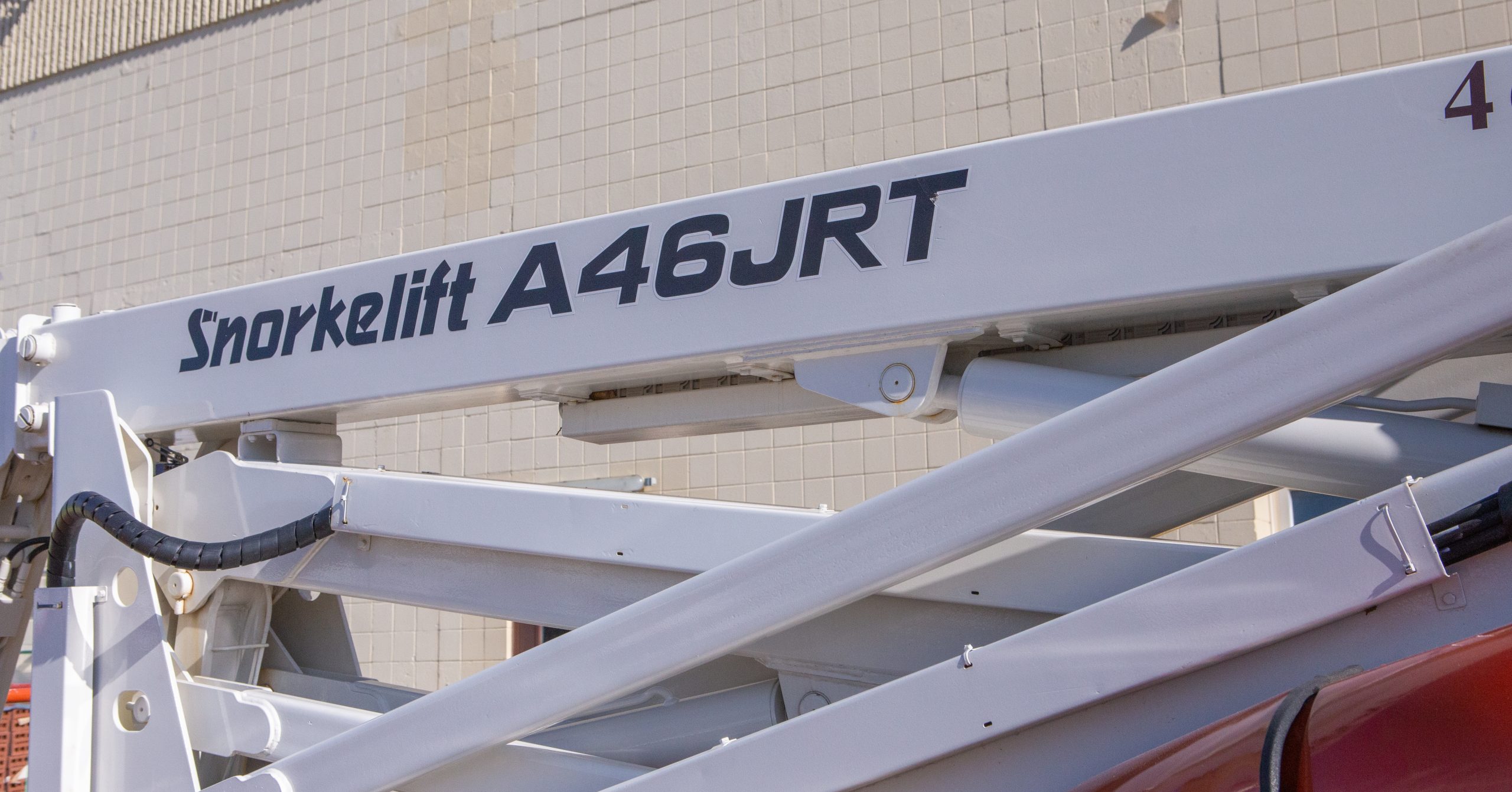

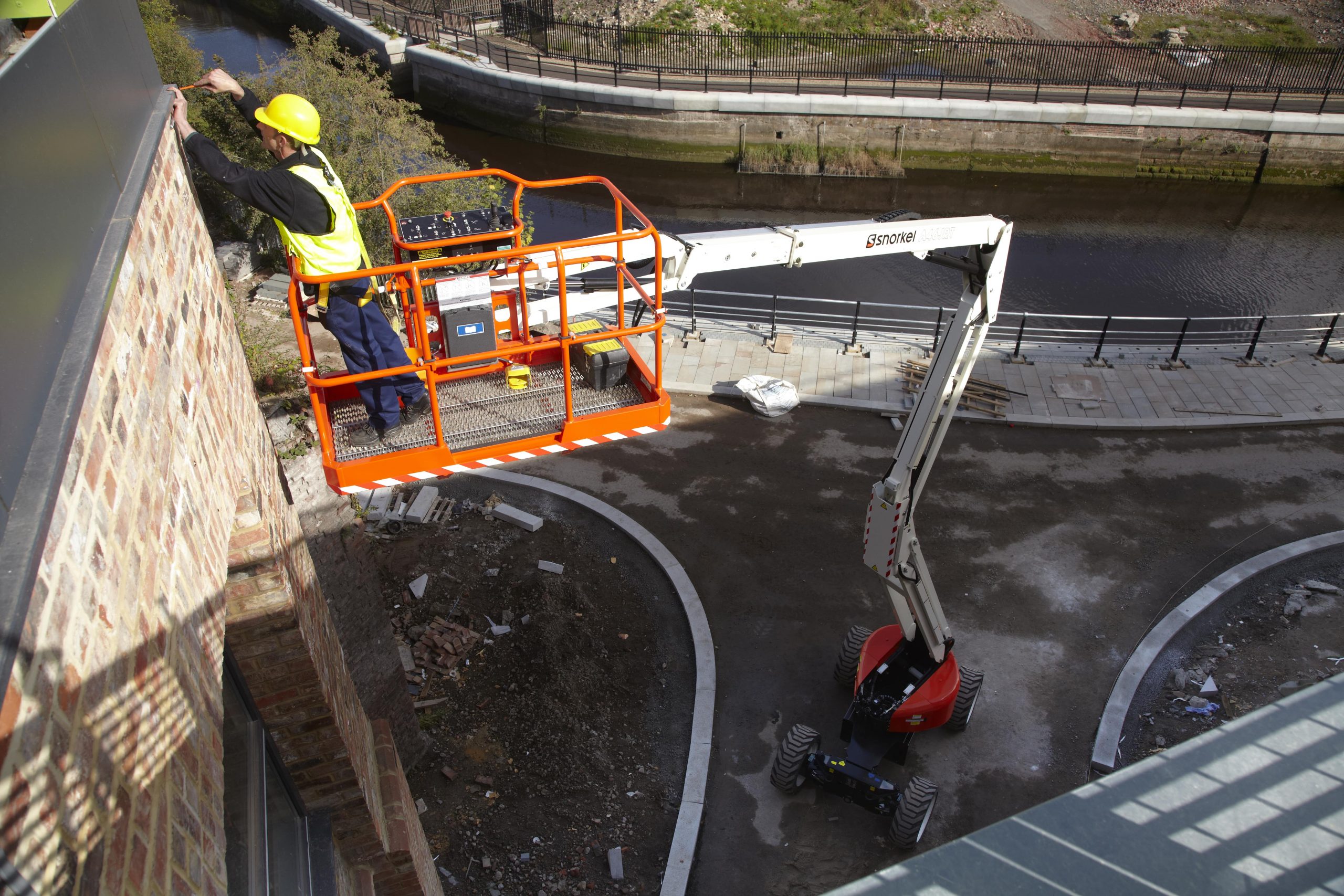

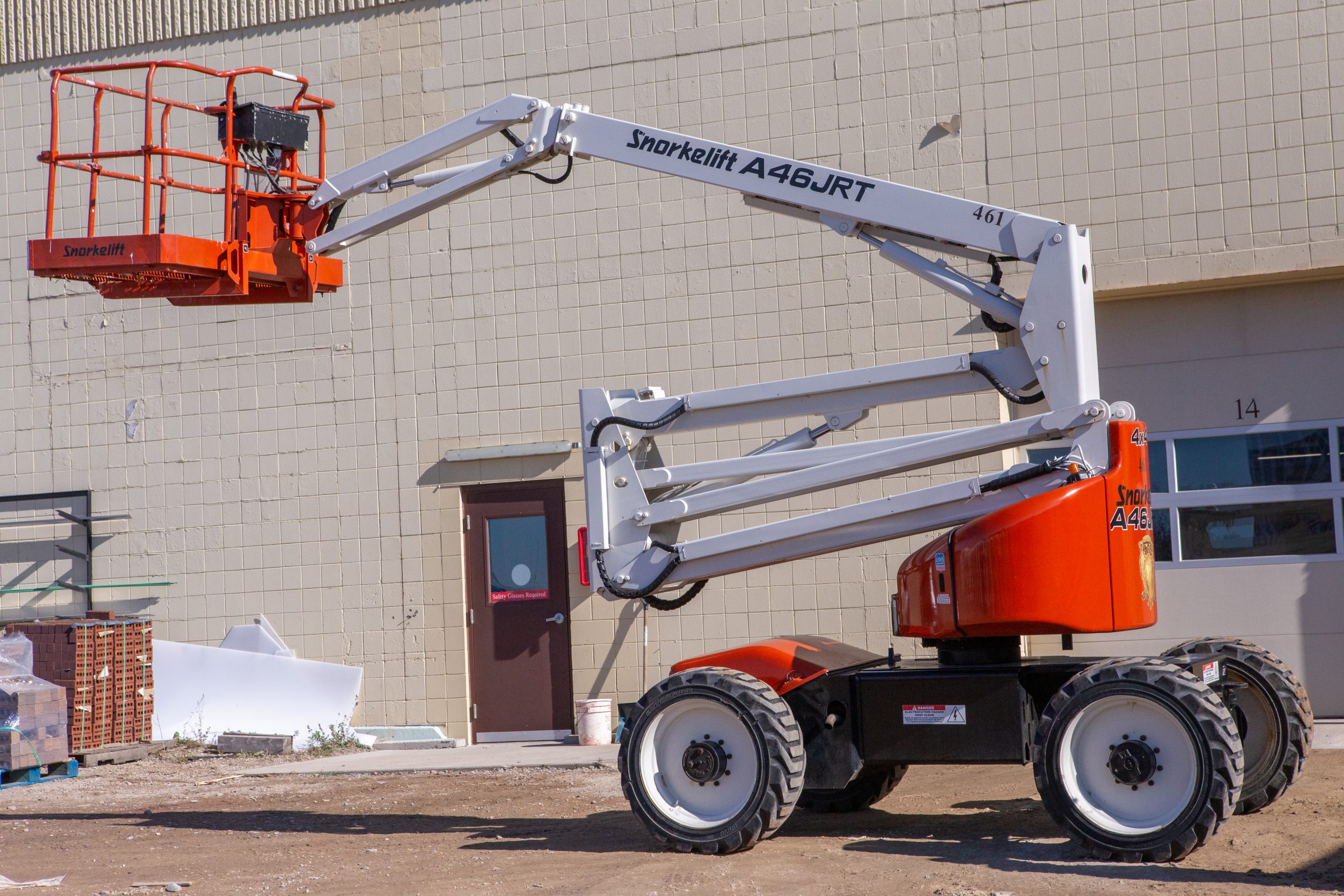

Snorkel – A46JRT (Articulating)

Platform Height: 46′ 11″
Platform Size: 39″ x 72″
Capacity: 500 lbs

Category:

Description

Selected Dimensions

PERFORMANCE
Platform Height: 46 ft 11 in
Horizontal Reach: 24 ft 11 in
Up-and-over Clearance Height: 25 ft 2 in
Platform Size: 39 in x 72 in
Capacity: 500 lbs

DIMENSIONS
Length, Stowed: 18 ft 4 in
Width, Stowed: 6 ft 10 in
Height, w/ Lowered Boom: 7 ft 2 in

POWER AND DRIVE
Power Source: Diesel

WEIGHT
Weight: 16,620 lbs

Manufacturer Manual: Download PDF
