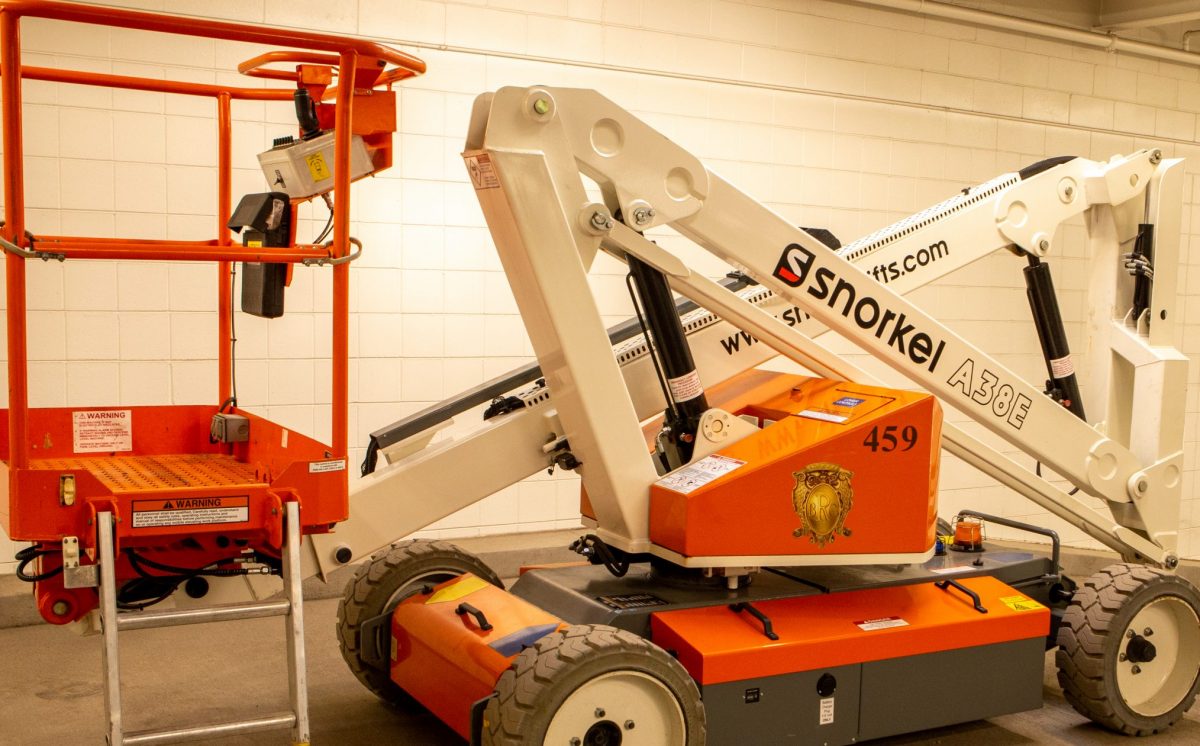

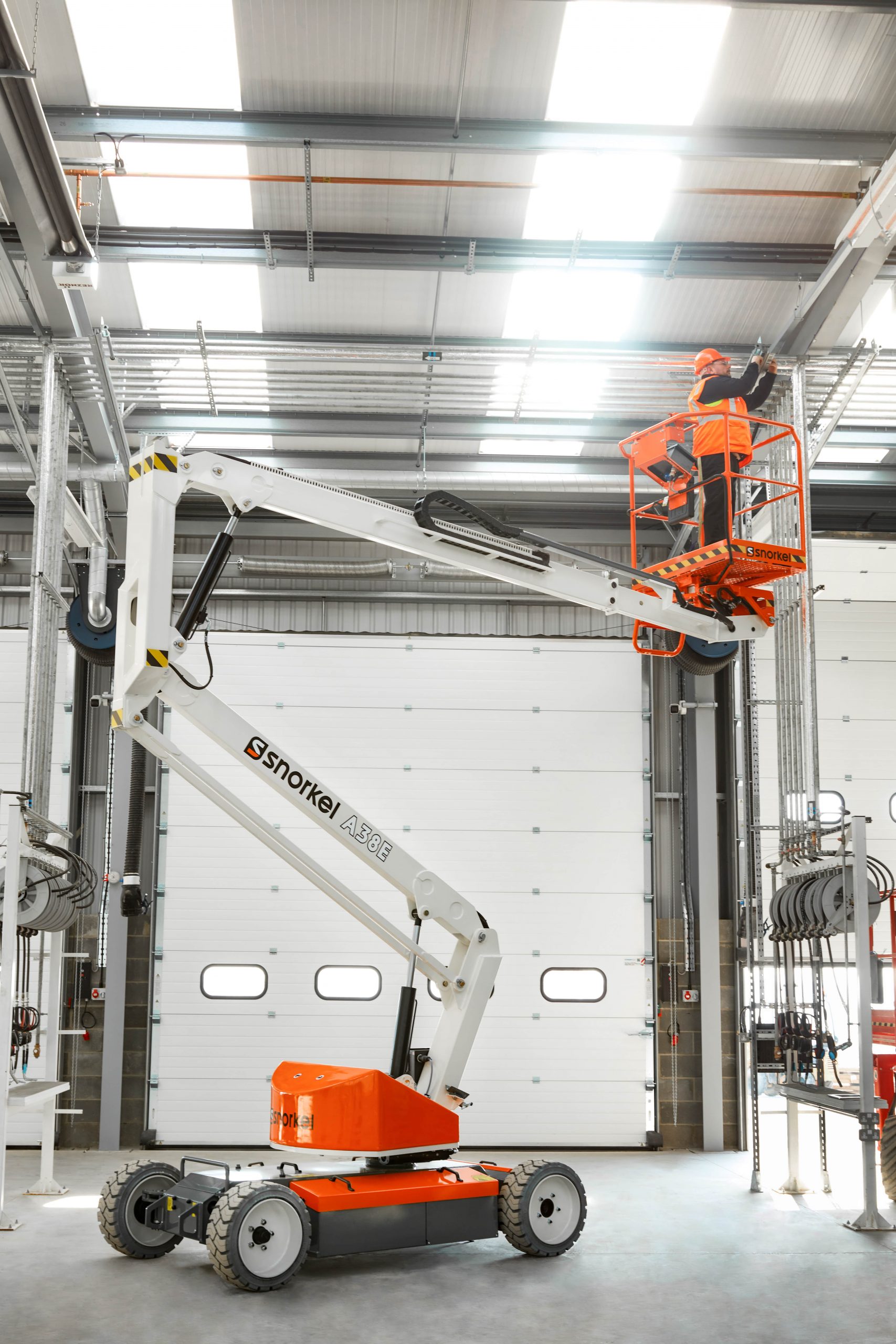

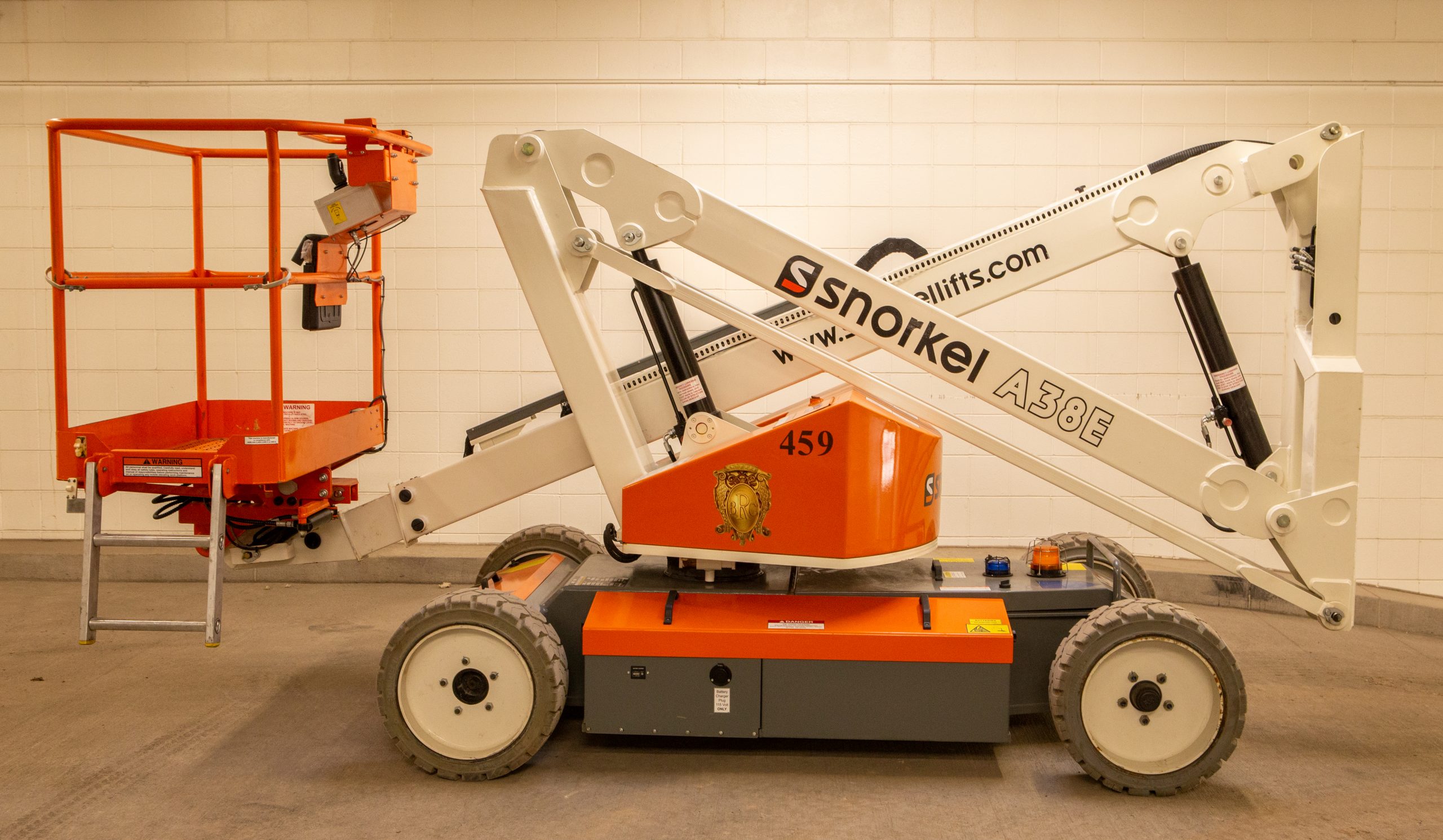

Snorkel – A38E

Platform Height: 37′ 7″
Platform Size: 28″ x 49″

Description

Selected Dimensions

PERFORMANCE
Platform Height: 37 ft 7 in
Horizontal Reach: 18 ft 4 in
Up-and-over Clearance Height: 17 ft 9 in
Platform Size: 28 in x 49 in

DIMENSIONS
Length, Stowed: 13 ft 4.8 in
Width, Stowed: 4 ft 11 in
Height, w/ Lowered Boom: 6 ft 8 in

POWER AND DRIVE
Power Source: Electric

WEIGHT
Weight: 9,140 lbs

Manufacturer Manual: Download PDF
